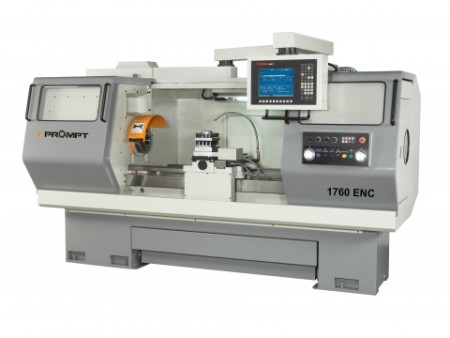

Горизонтальный токарный станок с ЧПУ 1760 ENC

Features

• The rigid construction bed is induction hardened over HRC 50 and precision ground provides heavy duty turning and fine finishing at high accuracy.
• To ensure high accuracy, the main spindle is supported by selected and preloaded super precision bearings through speed ranges.
• The main spindle, shafts and gears in the headstock are made by high grade alloy steel; hardened and precision ground for high speed running at lower noise level.
• The automatic lubrication pump equipped on apron provides all slideways and two axes ballscrews lubrication continually.
• The hardened and precision ground ballscrews for X & Z axes are mounted on high precision bearings to enable sensitive movement.
• Both X & Z axes equipped with individual electronic handwheels on control panel for manual operation as conventional lathes.
• The FAGOR 8055i/A CNC COMPACT controller is standard equipment.
• Semi-enclosed front chuck and chip guard equipped with interlock switches will be safe and easy operation according to CE regulation.
• Full length rear splash guard and front moveable chip trolley provide chip and coolant safe and easy clean.
• Special unlocked door on rear splash guard provides maintain and adjust easily for X axis and home switches.
• X & Z axes equipped with power supply, monodriver and AC servo motor of selected controller.
• Modular input / output card can evidence all control system situation for maintenance and trouble shooting easily.

STANDARD ACCESSORIES

• Fagor 8055i/A CNC compact
• X & Z axes equipped with AC servo motors
• Spindle encoder
• Automatic lubrication pump for slideways and ball screws
• Cutting fluid coolant system
• Full length rear splash guard
• Front chuck & chip safety guard
• Working lamp
• RS-232 port
• Centers and center sleeve
• Leveling blocks
• Service tools and toolbox
• Operation, programming and instruction manuals

OPTIONAL ACCESSORIES

• Manual 3-jaw scroll chuck
• Manual 4-jaw independent chuck
• Steady rest
• Follow rest
• ISO quick change toolpost with 4 toolholders
• Electrical automatic indexing 4-way toolpost
• Rear type hydraulic turret 8 station
• Hydraulic hollow chuck
• Hydraulic tailstock
• Chip conveyor w/cart
• Automatic spindle speed change
• Full enclosed rear guard
• Face plate
• Live center
• Drill chuck with arbor
