CABINET SHOP SERIES
- Fixed table model
- Two spindle configuration
- Table area 61" x 37-4/5" (1550 x 960mm)
- 7.5 HP motor x 2
- Foot spindle lock
- Foot spindle brake
- Reversible spindle
- Available with sliding table
- Magnetic controls protection with voltage transformer
- Precision matched MK5 tapered spindle
TABLE:
The massive shaper table surface is made from high quality cast iron, rib reinforced for maximum table flatness and durability. Table surface is precision ground and polished, allowing minimal friction.
ELECTRICS:
Equipped with magnetic switch with overload protection. All electrical components are UL/CSA approved for U.S. market. Motors are industrial rated for continuous duty.
FOOT SPINDLE BRAKE:
Foot treadle plate provides instant spindle braking after power has been shut off.
FOOT SPINDLE LOCK:
The spindle is foot treadle locked for convenient cutter and spindle changeover.

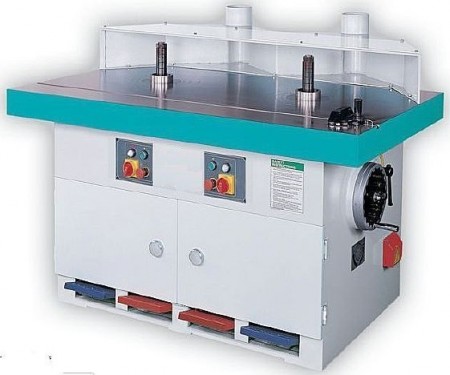

LS-2070DS
FENCE (Optional)
The 2070 series can be fitted with a precision cast iron and aluminum fence to perform independent spindle shaping operations.
Quick Change Spindle Speed
The spindle is driven with four-speed pully, for spindle speeds of 3000, 4500, 7500 and 10,000 RPM. Change of speed is fast and easily made by simply loosening one locking lever and shifting
