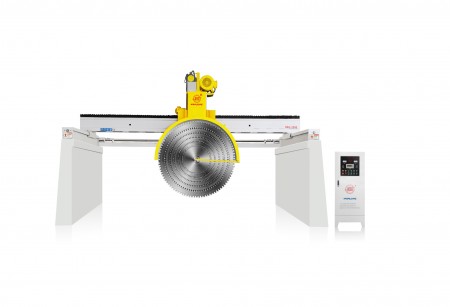

Bridge Multiblade Block Cutter QSQ-2500
  • Bridge Multiblade Block Cutter QSQ-2500

Bridge Multiblade Block Cutter QSQ-2500

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    WANLONG

  • Modification

    Multi-blade Stone Cutting Machine

  • Application

    Stone Block Cutting

  • Operations

    Sraight line cutting

  • Processing length

    3300 mm

  • Processing width

    2100 mm

  • Processing height

    1100 mm

  • Motor power

    45 kW

Similar goods

Описание:

Stone block cutting machines QSQ2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting.

  • It has screw-rod lifting system and hydraulic lifting system for choice.
  • The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ).
  • Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
  • It is also flexible in modification for Single blade cutting.

General properties

  • CNC: -
  • Modification: Multi-blade Stone Cutting Machine
  • Number of axes: 3-axis stone Cutting Machine
  • Application: Stone Block Cutting
  • Operations: Sraight line cutting
  • Frame: Bridge-type

Throughtput

  • Processing length: 3300 mm
  • Processing width: 2100 mm
  • Processing height: 1100 mm

Cooling water

  • Water consumption: 30 m3/hour

Additional

  • Lifting system: Hydraulic lifting system

Circular saw

  • Max. quantity of blades: 5 pcs
  • Min. diameter of blade: 800 mm
  • Max. diameter of blade: 2500 mm
  • Recommend saw blade thickness: 7.2 mm

Power Supply

  • Motor power: 45 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 7300 mm
  • Overall width: 3800 mm
  • Overall height: 6100 mm
  • Weight: 11000 Kg
