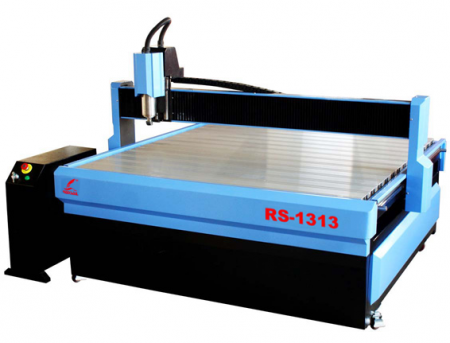

CNC router M-1313
  • CNC router M-1313
  • CNC router M-1313

CNC router M-1313

Production country: China

Основные характеристики

  • Size

    Medium-size CNC router

  • Number of axis

    4 Axis-CNC Router

  • Spindle speed

    0 rpm — 24000 rpm

  • Spindle power

    2200 W

  • X-axis stroke

    1260 mm

  • Y-axis stroke

    1300 mm

  • Z-axis stroke

    200 mm

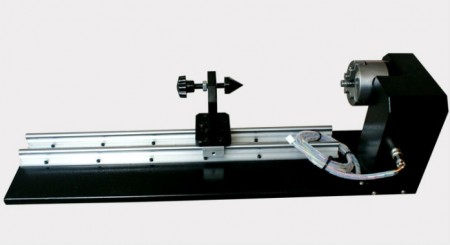

  • 4th Axis Rotary Table

    +

Similar goods

Описание:

CNC Router adopt overall steel body, Linear Guideways and Ballscrews, it provides long lifetime, superior cutting and engraving quality, while requiring minimal maintenance.
CNC Router can be used for advertisement engraving and cutting, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, acrylic board processing with high precision and high speed.
CNC Routers are easy to learn and operate, the control system of CNC Router is compatible with
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 and so on. CNC Router adopt overall steel body, Linear Guideways and Ballscrews, it provides long lifetime, superior cutting and engraving quality, while requiring minimal maintenance.
Redsail CNC Router can be used for advertisement engraving and cutting, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, acrylic board processing with high precision and high speed.
Redsail CNC Routers are easy to learn and operate, the control system of CNC Router is compatible with
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 and so on.

General properties

  • Size: Medium-size CNC router
  • Milling/routing materials: Wood, Plastic, Soft metal
  • Number of axis: 4 Axis-CNC Router
  • Max. acceptable material thickness: 180 mm

Spindle

  • Number of Spindels: 1 pcs
  • Spindle speed: 0 rpm — 24000 rpm
  • Spindle power: 2200 W
  • Working precision: 0.01 mm
  • Repositioning accuracy: 0.02 mm

Options

  • Auto Tool Changer (ATC) : -
  • The control system: DSP controller
  • Water tank: -
  • 4th Axis Rotary Table: +
  • Spindle cooling method: Water cooling

Horizontal working table

  • Working table: T-slot table
  • Working table width (X-axis): 1300 mm
  • Working table length (Y-axis): 1300 mm
  • Transmission way of X: Linear square rail guide
  • Transmission way of X: Linear square rail guide
  • Transmission way of Z.: Linear square rail guide
  • Driving units for X-axis: Ball screw

Working area

  • X-axis stroke: 1260 mm
  • Y-axis stroke: 1300 mm
  • Z-axis stroke: 200 mm

Speed

  • Max. working speed: 4 m/min
  • Max. travelling speed: 8 m/min

Power Supply

  • Drive: Stepper motor
  • Voltage: 220
  • Phase: Single-phase

Overall dimensions

  • Weight: 450 Kg
