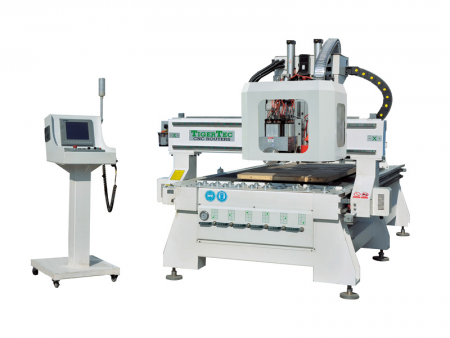

CNC Router ATC with boring unit TR408 H ATC
  • CNC Router ATC with boring unit TR408 H ATC

CNC Router ATC with boring unit TR408 H ATC

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Size

    Medium-size CNC router

  • Number of axis

    3 Axis-CNC Router

  • Spindle power

    9000 W

  • X-axis stroke

    1300 mm

  • Y-axis stroke

    2500 mm

  • Z-axis stroke

    300 mm

  • Auto Tool Changer (ATC)

    +

Similar goods

Описание:

CNC Router TR408H-ATC  with Italy boring head is designed for industrial wood work factory. It's a strong router using a heavy stress less welded steel frame, suitable for high speed milling, boring and sawing.

With the help of some aggregate, the machine can be used for side milling and boring.

In standard, the machine is equipped with an Italian air cooling spindle, a Italian boring head, a Yaskawa servo motors and the Taiwanese Syntec numerical controller

Options:

1.8pieces tool holders

2.Mixed T-slot and vacuum table

3.Automatic lubricating system

4.Z trock 400mm

5.Larger size table 2000*6000mm

6.Aggregate head

7.Boring unit

General properties

  • Size: Medium-size CNC router
  • Milling/routing materials: Wood, Plastic, Soft metal, Glass
  • Number of axis: 3 Axis-CNC Router
  • Max. acceptable material thickness: 280 mm

Spindle

  • Number of Spindels: 1 pcs
  • Spindle speed: 0 rpm — 24000 rpm
  • Spindle power: 9000 W
  • Working precision: 0.03 mm
  • Repositioning accuracy: 0.05 mm

Options

  • Auto Tool Changer (ATC) : +
  • The control system: Mach 3 USB controller
  • Water tank: -
  • 4th Axis Rotary Table: -
  • Spindle cooling method: Air cooling

Horizontal working table

  • Working table: T-slot table
  • Working table width (X-axis): 1560 mm
  • Working table length (Y-axis): 3850 mm
  • Transmission way of X: Linear square rail guide
  • Transmission way of X: Linear square rail guide
  • Transmission way of Z.: Linear square rail guide
  • Driving units for X-axis: Ball screw
  • Driving units for Y-axis: Ball screw
  • Driving units for Z-axis: Rack pinion

Working area

  • X-axis stroke: 1300 mm
  • Y-axis stroke: 2500 mm
  • Z-axis stroke: 300 mm

Speed

  • Max. working speed: 30 m/min
  • Max. travelling speed: 40 m/min

Power Supply

  • Drive: Servo-motor
  • Voltage: 380
  • Phase: Three-phase

Overall dimensions

  • Weight: 2300 Kg
