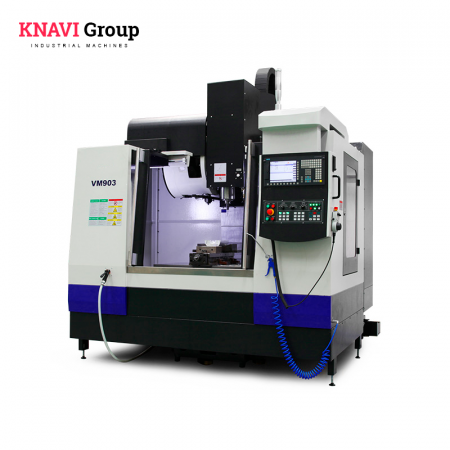

Vertical Working Center VM903S
  • Vertical Working Center VM903S

Vertical Working Center VM903S

Production country: China

Основные характеристики

  • Brand

    NEWAY

  • Type

    Vertical CNC machining center

  • CNC

    Fanuc

  • Working table length

    950 mm

  • Working table width

    520 mm

  • Max. worktable load

    600 Kg

  • Range of Spindle Speeds

    0 rpm — 8000 rpm

  • Distance from spindle nose to table top

    150 mm — 710 mm

Similar goods

Описание:

Small Vertical Machining Center VM903S

M903S is a kind of medium and small size vertical machining center with a fixed column using mechanical and electrical integration design and has an elegant shape, and also capable for precision cutting. The machine can automatically complete the machining processes of milling, drilling, boring, expansion, hinge, countersink, tapping and so on in a single set-up.
Suitable for medium and small box-type, board type, plate type, shell type and other complex parts of the multi-species processing, the machine is widely used in automobile parts, molds, valves, construction machinery, IT equipment, optical equipment, medical equipment, and aerospace industries.


General properties

  • Type: Vertical CNC machining center

Control unit

  • CNC: Fanuc

Spindle

  • Spindle axis orientation: Vertical
  • Spindle drive: Gear drive spindle
  • Range of Spindle Speeds: 0 rpm — 8000 rpm
  • Spindle Taper: BT40
  • Distance from spindle nose to table top: 150 mm — 710 mm
  • Distance from spindle nose to column: 590 mm — 590 mm

Additional

  • Positioning accuracy: 0.008 mm
  • Repeatability accuracy: 0.005 mm

Options

  • Coolant through spindle system: -

Horizontal working table

  • Working table length: 950 mm
  • Working table width: 520 mm
  • Longitudinal (X-axis) travel of table: 850 mm
  • Cross (Y-axis) travel of table: 520 mm
  • Vertical (Z-axis) travel of table: 560 mm
  • Rapid feed X-axis: 36 m/min
  • Rapid feed Y-axis: 36 m/min
  • Rapid feed Z-axis: 30 m/min
  • Max. worktable load: 600 Kg

T-slots of horizontal table

  • Number of T-slots: 5 pcs
  • T-slot width: 18 mm

Operating tools

  • ATC type: Chain type tool magazine
  • Tool taper: MAS403 BT40
  • Max. tool diameter: 78 mm
  • Max. tool lenght: 300 mm
  • Max. tool weight: 8 Kg
  • Tool changing time: 1.8 s

Power Supply

  • Total motor power: 11 kW
  • Motor power of spindle: 7.5 kW

Overall dimensions

  • Overall length: 4200 mm
  • Overall width : 2300 mm
  • Overall height: 3000 mm
  • Weight: 6000 Kg
