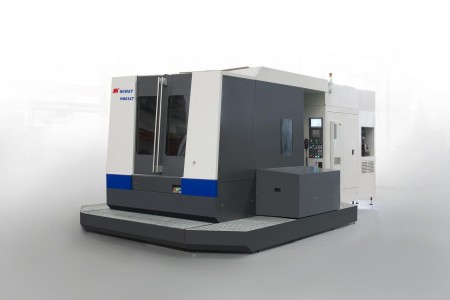

Horizontal Machining CNC Center HM634T
  • Horizontal Machining CNC Center HM634T

Horizontal Machining CNC Center HM634T

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    NEWAY

  • Type

    Horizontal CNC machining center

  • CNC

    Fanuc

  • Working table length

    630 mm

  • Working table width

    630 mm

  • Max. worktable load

    1200 Kg

  • Range of Spindle Speeds

    20 rpm — 4500 rpm

  • Distance from spindle nose to table top

    200 mm — 1100 mm

Similar goods

Описание:

Horizontal Machining CNC Center HM634T

The machine can automatically complete the machining processes of milling, drilling, boring, expansion, hinge, countersink, tapping and so on in a single set-up.
Suitable for medium and small box-type, board type, plate type, shell type and other complex parts of the multi-species processing, the machine is widely used in automobile parts, molds, valves, construction machinery, IT equipment, optical equipment, medical equipment, and aerospace industries.


General properties

  • Type: Horizontal CNC machining center

Control unit

  • CNC: Fanuc

Spindle

  • Spindle axis orientation: Horizontal
  • Spindle drive: Gear drive spindle
  • Range of Spindle Speeds: 20 rpm — 4500 rpm
  • Spindle Taper: MAS403 BT50
  • Distance from spindle nose to table top: 200 mm — 1100 mm

Additional

  • Positioning accuracy: 0.01 mm
  • Repeatability accuracy: 0.006 mm

Options

  • Coolant through spindle system: -

Horizontal working table

  • Working table length: 630 mm
  • Working table width: 630 mm
  • Longitudinal (X-axis) travel of table: 1000 mm
  • Cross (Y-axis) travel of table: 850 mm
  • Vertical (Z-axis) travel of table: 900 mm
  • Rapid feed X-axis: 30 m/min
  • Rapid feed Y-axis: 30 m/min
  • Rapid feed Z-axis: 30 m/min
  • Max. worktable load: 1200 Kg

Operating tools

  • ATC type: Drum-type tool magazine
  • Tool taper: MAS403 BT50
  • Max. tool diameter: 125 mm
  • Max. tool lenght: 400 mm
  • Max. tool weight: 20 Kg
  • Tool changing time: 4.75 s

Power Supply

  • Total motor power: 18.5 kW
  • Motor power of spindle: 15 kW

Overall dimensions

  • Overall length: 6530 mm
  • Overall width : 4330 mm
  • Overall height: 3360 mm
  • Weight: 21000 Kg
