Production country: China
Type
Universal metalworking lathe
Distance between centers
1500 mm
Swing over bed
460 mm
Swing over cross slide
270 mm
Taper of spindle bore (by Morse)
MT6
Range of spindle speeds (50Hz)
25 rpm — 2000 rpm
Step of spindle speeds
12
Range of inch threads
2 T.P.I. — 112 T.P.I.
Range of metric threads
0.1 mm — 14 mm
Motor power
5.5 kW

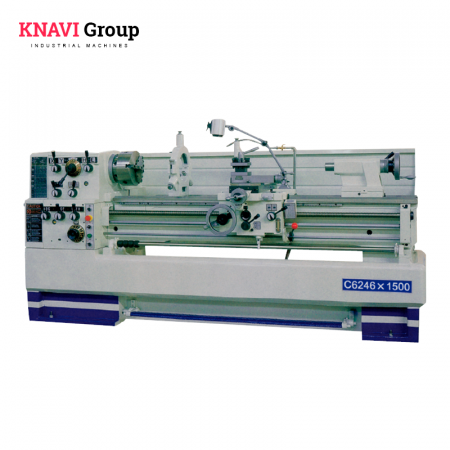

Engine lathe С6246
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.The spindle system is high in rigidity and accuracy.The design of the main dribe is optimized and the gears in the headstock are precision ground.The noise of the machine is low. There is no need for change gears.The machine can turn about 200 kinds of metric,whitworth,module and D.P. threads.An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and eliable apedal braking device providing quick and effective stop while operating.
