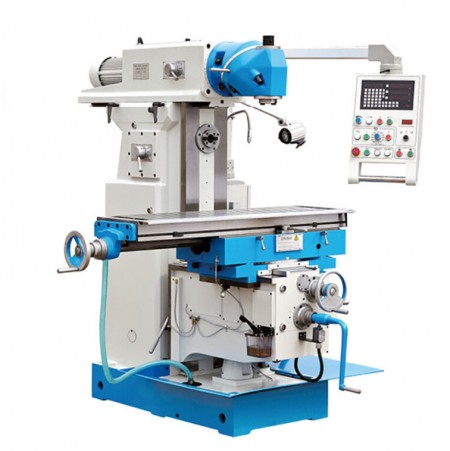

Universal swivel head milling machine X6232

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Weida

  • Type

    Universal Milling Machines (Vertical + Horizontal)

  • Spindle axis orientation

    Horizontal and verical orientation

  • Spindle taper

    ISO40

  • Range of Spindle Speeds

    75 rpm — 1600 rpm

  • Range of Spindle Speeds

    60 rpm — 1750 rpm

Similar goods

Описание:

X6232 Universal Rotary Head Milling Machine:
1.This milling machine is with universal milling head which can swivel 360 degrees.
2.Ram can be movable forward and backward.
3.The machine is with dovetail guideway.

General properties

  • Type: Universal Milling Machines (Vertical + Horizontal)
  • Modification: Swivel head milling machine
  • Digital Unit: Digital Readout Unit

Spindle

  • Spindle axis orientation: Horizontal and verical orientation
  • Number of spindles: 2 spindles

Vertical spindle

  • Spindle taper: ISO40
  • Range of Spindle Speeds: 75 rpm — 1600 rpm
  • Number of Spindle Speeds: Variable
  • Distance from spindle nose to table top: 170 mm — 590 mm
  • Distance from spindle axis to column surface: 240 mm — 740 mm
  • Vertical Head Tilt Angle (R&L): 360 °

Horizontal spindle

  • Spindle taper: ISO50
  • Range of Spindle Speeds: 60 rpm — 1750 rpm
  • Number of Spindle Speeds: Variable
  • Distance from spindle axis to table surface: 170 mm — 590 mm

Horizontal working table

  • Working table length: 1320 mm
  • Working table width: 320 mm
  • Max.load of table: 300 Kg

T-slots of horizontal table

  • Number of T-slots: 3 pcs
  • T-slot width: 14 mm

Working area

  • Longitudinal (X-axis) travel : 800 mm
  • Cross (Y-axis) travel : 290 mm
  • Vertical (Z-axis) travel: 400 mm
  • Longitudinal (X-axis) rapid speed: 25 mm/min — 800 mm/min
  • Cross (Y-axis) rapid speed: 25 mm/min — 800 mm/min
  • Vertical (Z-axis) rapid speed: 8 mm/min — 267 mm/min
  • Ram travel: 500 mm

Power Supply

  • Main motor power: 4 kW
  • (X/Y/Z) feed motor power: 1.1 kW

Overall dimensions

  • Overall size: 2550×2161×2102 mm
  • Weight: 1650 Kg
