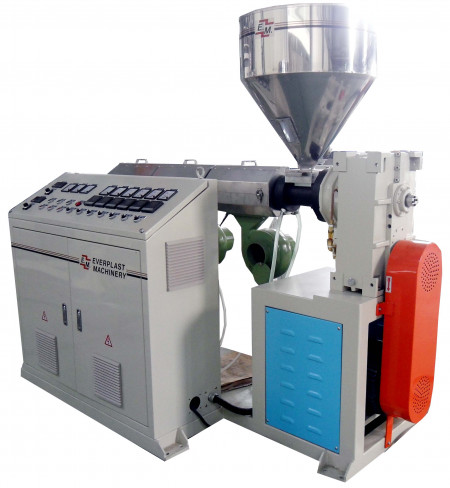

Single screw extruding machine EMS-55
  • Single screw extruding machine EMS-55

Single screw extruding machine EMS-55

Production country: Taiwan

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Extruder type

    Single-screw extruder

  • Processing plastics

    HDPE resin, Polyvinyl chloride (PVC)

  • Application

    Tubes/pipes extrusion, Profile extrusion

  • Production capacity

    60 Kg/h — 100 Kg/h

  • Screw diameter

    55 mm

Similar goods

Описание:

Single screw extruder comprises model EMS-35, 45, 55, 65, 85, 100, 120 and 150 to meet a wide range of requirements for extrusion types,materials,and application.
Precision grinding gears deliver a driving force that is more than 98 percent accuracy with noise levels under 65 dB.
"PID" thermo controller with "SCR" output temperature systems are used throughout to minimize power consumption and maintain temperature levels which are within one degree of set temperatures.
Along with cast aluminum cooling device on the barrel, and high efficiency driving motor and gears. That ensure consistent products and high outputs.

General properties

  • Extruder type: Single-screw extruder
  • Processing plastics: HDPE resin, Polyvinyl chloride (PVC)
  • Application: Tubes/pipes extrusion, Profile extrusion
  • Production capacity: 60 Kg/h — 100 Kg/h

Screw

  • Screw Speed: 60 rpm — 120 rpm

Screw #1

  • Screw diameter: 55 mm

Power Supply

  • Motor power: 37 kW
  • Voltage: 380 V
  • Phase: Three-phase

Overall dimensions

  • Overall length: 2040 mm
  • Overall width: 1000 mm
  • Overall height: 1900 mm
