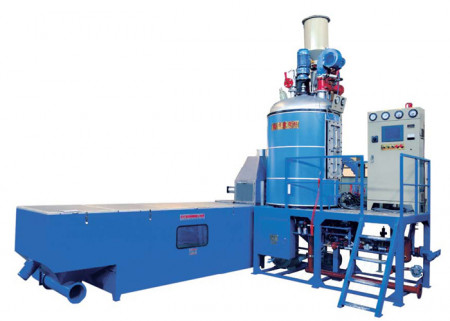

Batch Pre-expander SPJ70B
  • Batch Pre-expander SPJ70B

Batch Pre-expander SPJ70B

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Type

    Batch Pre-expander Machine

  • Operating

    Full-automatic operating

  • Expand Density

    12 kg/m3 — 80 kg/m3

  • Product capacity

    75 Kg/h — 320 Kg/h

  • Usable Volume

    0.32 m3

Similar goods

Описание:

Including common dryer bed, screw conveyer,filling, sieving devices,etc

① Steam system: Steam pressure reducer and angle valve to control steam.

② Filling system: Adopts electronic weighing system, setting filling weight on touchscreen for material filling automatically.

③ Material levelcontrol: Adopts photo sensor to control theexpansion level.

④ Electric control: Adopt PLC and touch screen, keep all process work automatically.

General properties

  • Type: Batch Pre-expander Machine
  • Operating: Full-automatic operating
  • Expand Density: 12 kg/m3 — 80 kg/m3
  • Product capacity: 75 Kg/h — 320 Kg/h

Throughtput

  • Throughput per 12 g/l: 75 kg/m3
  • Throughput per 15 g/l: 100 kg/m3
  • Throughput per 25 g/l: 160 kg/m3
  • Throughput per 80 g/l: 320 kg/m3

Steam supply

  • Steam consumption: 2 kg/cycle — 4 kg/cycle
  • Steam pressure: 0.6 MPa — 0.8 MPa
  • Steam inlet diameter: DN 40

Compressed Air

  • Pressured air consumption: 0.4 m3/cycle — 0.6 m3/cycle
  • Air Pressure: 0.6 MPa — 0.8 MPa
  • Air inlet diameter: DN 25

Drainage

  • Upper drain port: DN 80
  • Discharge port: DN 80

Expansion chamber

  • Diameter: 700 mm
  • Volume: 0.45 m3
  • Usable Volume: 0.32 m3

Power Supply

  • Connected power: 13.23 kW

Overall dimensions

  • Overall length : 5600 mm
  • Overall width: 2950 mm
  • Overall height: 3360 mm
  • Weight: 1500 Kg
