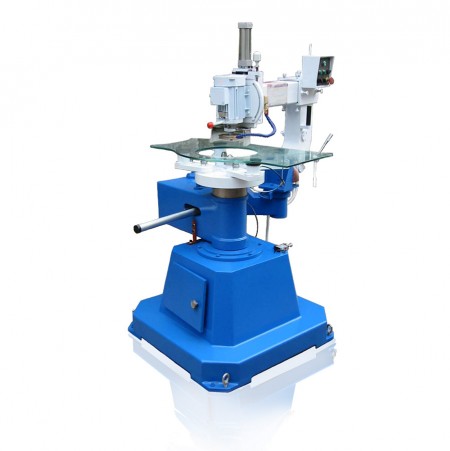

Semi-Automatic Shape Glass Edging & Beveling Machine G-SEB-1800D
  • Semi-Automatic Shape Glass Edging & Beveling Machine G-SEB-1800D

Semi-Automatic Shape Glass Edging & Beveling Machine G-SEB-1800D

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    XINOLOGY

  • Applications

    Glass Exterior, Glass Interior

  • Edge Profiles

    Bevel edge, Ogee, Pencil edge, Flat and arris, Water fall edge, etc

  • Glass Exterior diagonal

    110 mm — 2100 mm

  • Glass Interior diagonal

    750 mm — 750 mm

  • Thickness of Glass

    3 mm — 25 mm

  • Max. Width of Bevel

    30 mm

  • Bevel Angle

    2 ° — 20 °

Similar goods

Описание:

Features

  • 360o Freely Rotating Working Arm
  • Extendable Strong Working Arm Up To 2100mm
  • Spindle Holds 3 Peripheral Wheels At One Time Minimizing Wheels Changeover Time
  • First Class Casting Body
  • Process As Small As 110mm Glass
  • Table Rotating Speed Adjusted Infinitely With Regulator
  • Automatic Round Glass Or Close To Round Glass Processing
  • Dual Speed Spindle Motor



General properties

  • Applications: Glass Exterior, Glass Interior
  • Edge Profiles: Bevel edge, Ogee, Pencil edge, Flat and arris, Water fall edge, etc
  • Control type: Semi-Automatic

Additional

  • Compress Air Pressure: 8 MPa

Technical Parameters

  • Glass Exterior diagonal: 110 mm — 2100 mm
  • Glass Interior diagonal : 750 mm — 750 mm
  • Thickness of Glass : 3 mm — 25 mm
  • Max. Width of Bevel : 30 mm
  • Bevel Angle: 2 ° — 20 °

Horizontal working table

  • Rotating speed of working table: 0 rpm — 6.5 rpm

Power Supply

  • Spindle Motor Total Power: 1.1 kW
  • Total Power: 2.9 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 1800 mm
  • Overall width: 1900 mm
  • Overall height: 2100 mm
  • Weight: 1000 Kg
