Production country: China
Wire Diameter
1 mm — 9 mm
Spring diameter range
0 mm — 100 mm
Length of Grinding Spring
20 mm — 250 mm
Function point

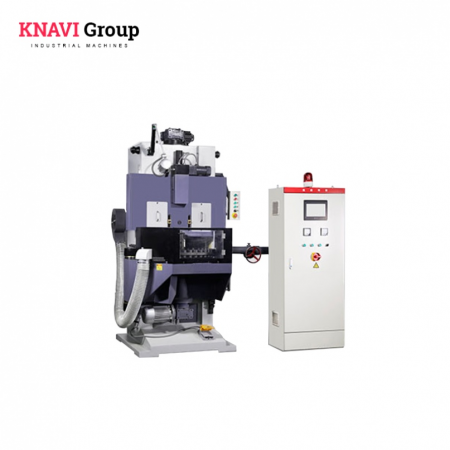

M02-9B CNC spring end grinding machineis the latestdeveloped double feed tray grinding spring machine based on the advanced CNCend grinding technology at home and abroad. By the utilization of air cylinder, this device could achieve the circulating exchange of feed trays, at the same time for process of grinding,loading or unloading the parts,as well as just feeding for grinding.lt adopts servo motor to control the grinding wheel and has the functions of automatic inspection,compensation and alarming. The feed speed and quantity of the grinding wheel,grinding pressure,rotating speed of the feeding plate all can be programmed on the computer screen.This machine is convenient to operate and has a high efficiency . It is the ideal equipment for double-end grinding of large quantity spring.
