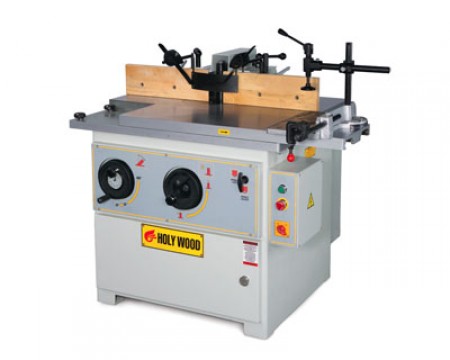

Spindle shaper HW-120TS
  • Spindle shaper HW-120TS

Spindle shaper HW-120TS

Production country: Taiwan

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Spindle Speed

    3200/4200/6000/8000 rpm

  • Type

    Single-spindle moulder

  • Working table length

    1200 mm

  • Working table width

    900 mm

  • Worktable height

    900 mm

  • Spindle stroke

    170 mm

  • Tilting angle of spindle

    -5 ° — 45 °

  • Motor power

    5.15 kW

Similar goods

Описание:

General properties

  • Type: Single-spindle moulder

Spindle

  • Spindle Speed: 3200/4200/6000/8000 rpm
  • Spindle stroke: 170 mm
  • Tilting angle of spindle: -5 ° — 45 °

Horizontal working table

  • Working table length: 1200 mm
  • Working table width: 900 mm
  • Worktable height: 900 mm
  • Table Opening Diameter: 350 mm

Sliding table

  • Sliding table: +
  • Sliding table length : 200 mm
  • Sliding table width: 300 mm

Power Supply

  • Phase: Single-phased
  • Current frequency: 50
  • Voltage: 220
  • Motor power: 5.15 kW

Overall dimensions

  • Overall length : 1060 mm
  • Overall width : 1110 mm
  • Overall height: 1125 mm
  • Weight: 380 Kg
