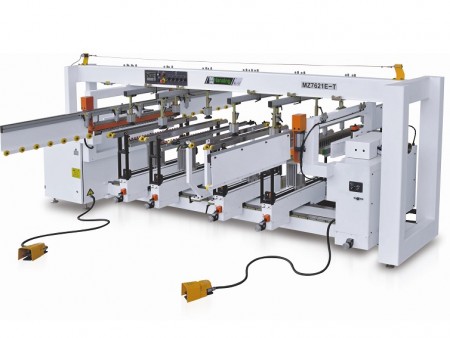

Single-row Boring Machine MZ7621E-T
  • Single-row Boring Machine MZ7621E-T

Single-row Boring Machine MZ7621E-T

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    NANXING

  • Max. panel width

    2650 mm

  • Max. panel thickness

    70 mm

  • Total number of spindle rows

    6 pcs

  • Vertical max. boring depth

    70 mm

  • Horizontal max. boring depth

    40 mm

Similar goods

Описание:

General properties

  • Functions: Boring
  • Type: Dowel Boring Machines
  • Max. panel width: 2650 mm
  • Min. panel length: 90 mm
  • Max. panel thickness: 70 mm

Throughtput

  • Vertical max. boring depth: 70 mm
  • Horizontal max. boring depth: 40 mm

Spindle

  • Total number of spindle rows: 6 pcs
  • Number of horizontal spindle groups: 2 pcs
  • Number of vertical spindle groups: 4 pcs
  • Center distance between the spindles: 32 mm

Power Supply

  • Input frequency: 60 Hz
  • In-put voltage: 380 V

Overall dimensions

  • Overall size: 4560×2835×1640 mm
  • Weight: 2500 Kg
