Single-row Boring Machine CNC-900

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    FULLPOWER

  • Type

    CNC Wood Boring center

  • Functions

    Boring, Grooving, Routing

  • Max. panel width

    900 mm

  • Max. panel thickness

    45 mm

  • Total number of spindle rows

    3 pcs

  • Vertical max. boring depth

    70 mm

  • Horizontal max. boring depth

    40 mm

Similar goods

Описание:

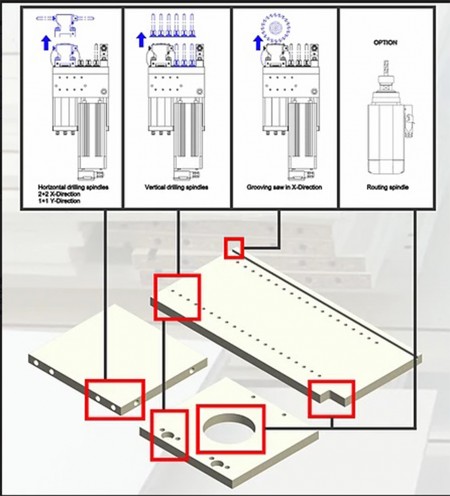

The latest space saving CBC-900 CNC Drilling, Grooving and routing machine is focused on the needs of closet, cabinet , and system manufacturers and offers fast processing, simple operation, excellent processing quality and a great value for your investment.



General properties

  • Type: CNC Wood Boring center
  • Functions: Boring, Grooving, Routing
  • Min.panel width: 100 mm
  • Max. panel width: 900 mm
  • Min. panel length: 200 mm
  • Max. panel thickness: 45 mm

Throughtput

  • Vertical max. boring depth: 70 mm
  • Horizontal max. boring depth: 40 mm

Spindle

  • Total number of spindle rows: 3 pcs
  • Number of horizontal spindle groups: 2 pcs
  • Number of vertical spindle groups: 1 pcs
  • total number of spindles: 14 pcs

Power Supply

  • Input frequency: 60 Hz
  • In-put voltage: 380 V

Overall dimensions

  • Overall size: 2100x1700x1500 mm
  • Weight: 1500 Kg
