Injection Blow Molding Machine IBM160S6

Production country: China

Cost in place: Moscow

Цена по запросу

Min. order qty 1 pcs

Brand

PowerJet
Type of blow molding

Injection blow molding (IBM)
Processing plastics

LDPE resin, HDPE resin, Polypropylene (PP), Polystyrene (PS), Polycarbonates (PC)
Functions

Products blow molding , Preform and products injection molding
Relative size

Small size, Medium size
Mold Clamping Force

160 t

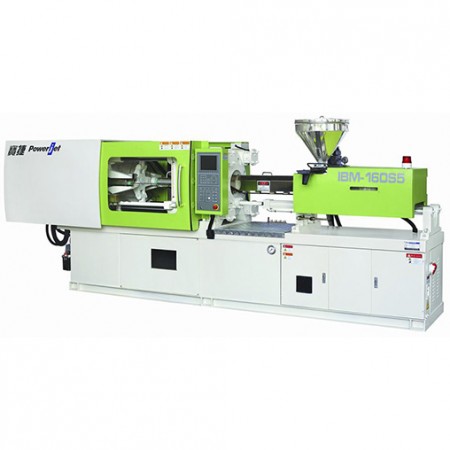

Injection Blow Molding Machine IBM160S6

Hot runner system is adopted in the mould, with high pressure injection molding and then blow molding, the final product is featured with high precise mouth, neck and thread. No parting line and no flash appears in the product, resulting a smooth and uniform product, and also saving the material.
Combined with injection and blow in the same machine, driven by servo motor with close-rope hydraulic system, it raises the repeatability precision, saves energy, and improves efficiency, Take Powerjet IBM160 machine for example, to produce the 20ml pharmaceutical PP bottle, with 16 cavities mould, the output can reach 56,000 pcs in 24 hours. Normally the rate of qualified products can be ≥99%.
It can be optional to equip with the auto packing line for matching the sanitary requirement for the food and pharmaceutical industries.
Hydraulic, pneumatic, and electrical controlling can be set in the HMI, which satisfies the technical need for different products.
Most of the thermoplastics like PP, PE, PS, PC can be made in the IBM machine.
Imported famous world brands hydraulic parts, seals and rubber hoses are equipped in the machine to match the sanitary requirement in cleaning workshop.
The machine characterizes with fast, high efficient, stable, energy saving, and easy for operation and maintenance.

Type of blow molding: Injection blow molding (IBM)
Processing plastics: LDPE resin, HDPE resin, Polypropylene (PP), Polystyrene (PS), Polycarbonates (PC)
Functions: Products blow molding , Preform and products injection molding
Relative size: Small size, Medium size
