Rigid Vertical and Horizontal Post

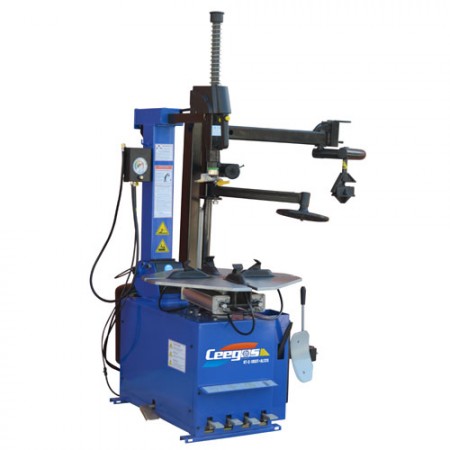

- Automatic tyre changer with tilting post
- Simultaneous pneumatic locking of horizontal and vertical head arms, with automatic head positioning in the ideal working position.
- Strengthened vertical post is not subject to flexion during heavy work operation.

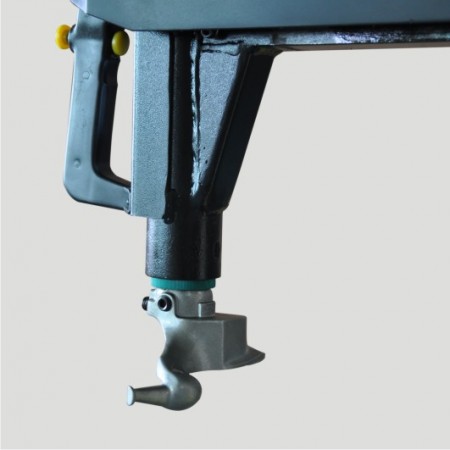

SmartoolTM Tool Head
- CEEGOS patented radian design guarantees that demounting and mounting are always carried out in an optimum way and in the utmost safety.
- Alloy material with special surface treatment ensures the strength and life of use.

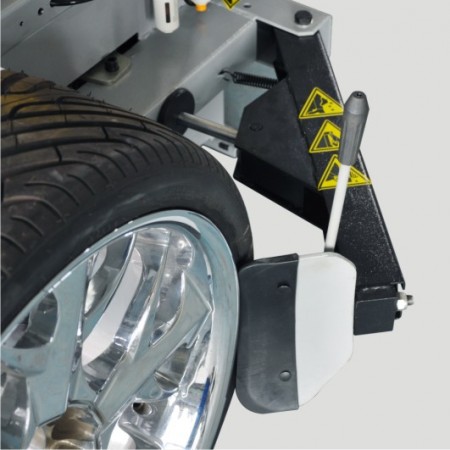

Powerful Bead Breaking System
- Stainless steel cylinder against any rust
- Double -acting pneumatic cylinder generates powerful 2,700kg bead breaking force loosen hard wheel with ease.
- Adjustable bead breaking shoe with precise radian allows tyre beads to be accurately loosened.
- Pedals in press-cast aluminum
- Removable front cover of pedal assembly for the convenience of maintenance and service.
Wheel Clamping System
- Rigid self-centering chuck with precise inching sliding locating the desired clamping size in one time.
- Reversible direction of turntable gives operators the ability to back up in the event of turntable stall during stubborn bead installation to reduce the risk of tire damage .
- Two-speed turntable available

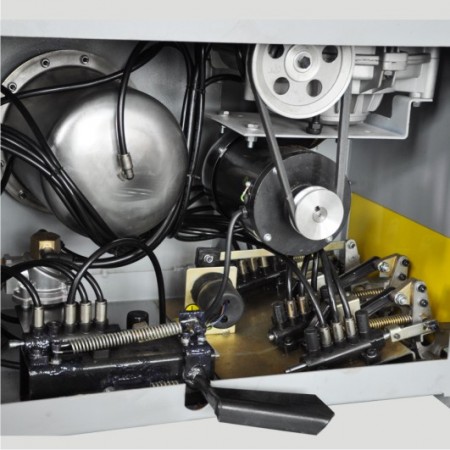

Maintenance-free Gear Box
- Special grease lubrication gives efficient heat dissipation for longer lift of use.
- High-strength alloy worm and worm gear with accurate matching and conformity transfer the stable and powerful working force onto the turntable.

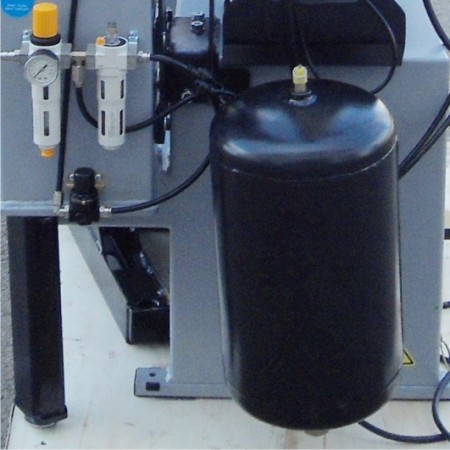

Tubeless Tyre Inflation System
- External air tank of the machine
- The blast inflation system is activated by a single pedal command with two positions.
Position 1: standard inflating mode.
Position 2: bead seating, by means of a large quantity of pressurized air passing through nozzles built into the chuck slides.
- Pressure release button on inflation gauge to discharge exceed pressure.

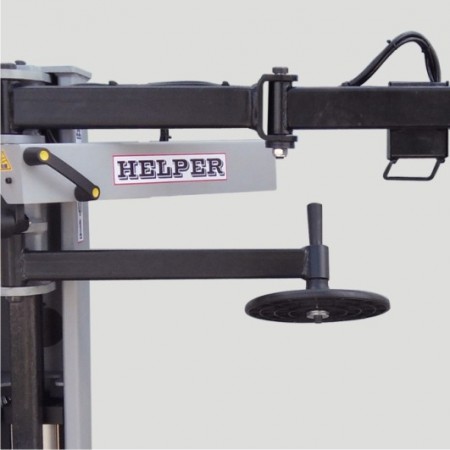

TuboAssist™ Assist Arm AL135
- Fresh innovative design, integrated with all functions of traditional twin assist arms in one.
- High-tensile three-stage swivel arm highlights super performance on run-flat and low profile tyres without flexion and deformation.
- Powerful screw-adjustable drop-center tool holds tough sidewalls non-escapable.
- Bead top pressing roller with vertical and horizontal movement works out accurate position along with strong power to treat stubborn beads.
- The bead lifting disc gives leverage at any position.
- Optional plastic rim press cone ideal for fastening the rim of reversal mounting tyres.
- Optional bead locking clamp for the convenience for special tyres.
Wheel Protection Package
- Complete with kit of plastic protections to prevent damage to the most delicate rims.
