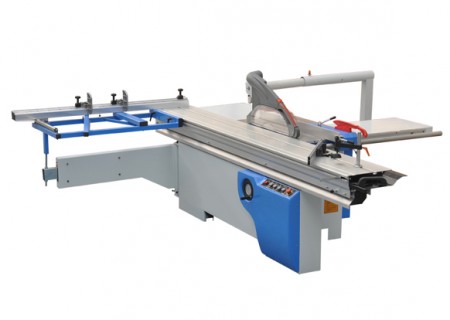

Precision panel saw A45
  • Precision panel saw A45

Precision panel saw A45

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Max. cutting length

    3000 mm

  • Max. sawing width

    1250 mm

  • Main saw tilting angle

    0 ° — 45 °

  • Max. cutting height

    80 mm

  • Main saw motor power

    4 kW

Similar goods

Описание:

General properties

  • Modification: Sliding-table Saw
  • Max. cutting length: 3000 mm
  • Max. sawing width: 1250 mm
  • Max cutting height at 45°, mm: 55, mm

Sliding table

  • Sliding table lenght: 3200 mm
  • Sliding table width: 375 mm

Main saw

  • Main saw tilting angle : 0 ° — 45 °
  • Max. cutting height: 80 mm
  • Main saw diameter: 300 mm
  • Main saw spindle diameter: 40 mm
  • Main saw spindle speed: 4000/6000 rpm

Scoring saw

  • Scoring saw diameter: 120 mm
  • Scoring saw spindle diameter: 20 mm
  • Scoring saw speed: 8000

Power Supply

  • Voltage: 380 V
  • Phase: Three-phase
  • Current frequency: 50
  • Main saw motor power: 4 kW
  • Scoring saw motor power: 0.75 kW

Overall dimensions

  • Overall width : 3050 mm
  • Overall length : 3250 mm
  • Overall height: 900 mm
  • Weight: 650 Kg
