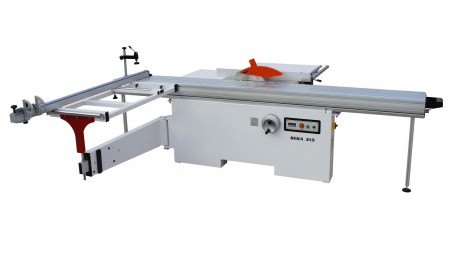

Sliding Table Saw SEGA 315
  •  Sliding Table Saw SEGA 315

Sliding Table Saw SEGA 315

Production country: China

Основные характеристики

  • Brand

    SICAR

  • Modification

    Sliding-table Saw

  • Max. cutting length

    3200 mm

  • Max. cutting height

    112 mm

  • Main saw diameter

    315 mm

  • Scoring saw diameter

    90 mm

  • Main saw motor power

    4 kW

Similar goods

Описание:

SEGA315 Sliding Table Saw

Electronic lift of main saw, tilt 0-45º.

The guide rail using high chrome steel,which improves working precision and extends service life.sliding table super-wide working table,making board-supporting more stable. With multipoint locking,improving work efficiency greatly.

General properties

  • Modification: Sliding-table Saw
  • Max. cutting length: 3200 mm
  • Max. sawing width: 1140 mm
  • Max cutting height at 45°, mm: 75

Horizontal working table

  • Main table lenght: 800 mm
  • Main table width: 500 mm

Sliding table

  • Sliding table width: 315 mm
  • Sliding table lenght: 2800 mm

Main saw

  • Main saw tilting angle : 0 ° — 45 °
  • Max. cutting height: 112 mm
  • - tilting: 0 °
  • Max. cutting height: 80 mm
  • - at tilting: 40 °
  • Main saw diameter: 315 mm
  • Main saw spindle diameter: 30 mm
  • Main saw spindle speed: 4500 rpm

Scoring saw

  • Scoring saw diameter: 90 mm
  • Scoring saw spindle diameter: 22 mm
  • Scoring saw speed: 7000

Power Supply

  • Voltage: 380 V
  • Phase: Three-phase
  • Current frequency: 50
  • Main saw motor power: 4 kW

Overall dimensions

  • Weight: 420 Kg
