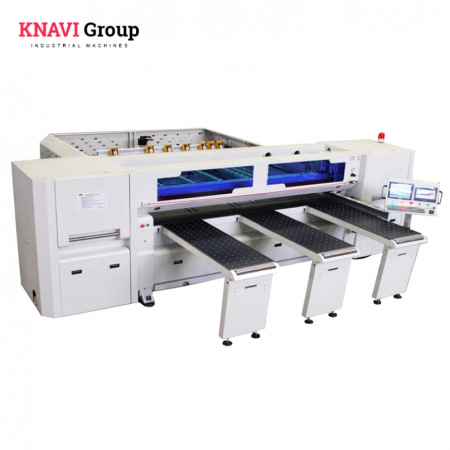

CNC Beam Saw HK2700
  • CNC Beam Saw HK2700

CNC Beam Saw HK2700

Production country: China

Cost in place: Moscow

Выберите город:

4 548 738 руб.

Min. order qty 1 pcs

Основные характеристики

  • Max. cutting length

    2700 mm

  • Main saw diameter

    355 mm

  • Main saw spindle speed

    3850 rpm

  • Scoring saw diameter

    180 mm

  • Scoring saw speed

    6300

Similar goods

Описание:

General properties

  • Modification: Beam saw
  • Feeding: Front feed
  • Max. cutting length: 2700 mm

Sliding table

  • Saw carriage forward speed : 80 m/min
  • Saw carriage backward speed : 120 m/min

Main saw

  • Max. cutting height: 80 mm
  • - tilting: 0 °
  • Main saw diameter: 355 mm
  • Main saw spindle diameter: 30 mm
  • Main saw spindle speed: 3850 rpm

Scoring saw

  • Scoring saw diameter: 180 mm
  • Scoring saw spindle diameter: 30 mm
  • Scoring saw speed: 6300

Power Supply

  • Voltage: 380 V
  • Phase: Three-phase
  • Current frequency: 50
  • Main saw motor power: 11 kW

Overall dimensions

  • Overall length : 5400 mm
  • Overall width : 5600 mm
  • Overall height: 1750 mm
  • Weight: 5300 Kg
