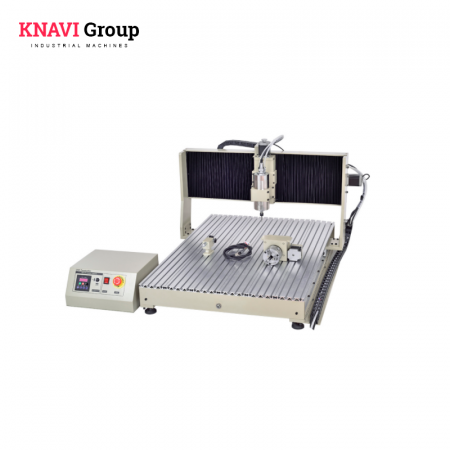

Desktop CNC woodworking router with rotary axis CNC6090GZ
  • Desktop CNC woodworking router with rotary axis CNC6090GZ

Desktop CNC woodworking router with rotary axis CNC6090GZ

Production country: China

Основные характеристики

  • Size

    Desktop CNC router

  • Number of axis

    4 Axis-CNC Router

  • Spindle speed

    0 rpm — 24000 rpm

  • Spindle power

    2.2 W

  • X-axis stroke

    600 mm

  • Y-axis stroke

    900 mm

  • Z-axis stroke

    150 mm

  • Working table

    T-slot table

  • Spindle cooling method

    Water cooling

Similar goods


CNC Router Features

1,Advanced Control System
Mach3 or Advanced DSP numerical control system and large liquid crystal display brings out much convenient operation and simpler maintenance.
Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.


2,Large Memory and Perfect Data Transmission
Large internal memory of 32M is enough to simultaneously store more than 30 processing files which can be read freely.
Apply USB interface (plug and play) to communicate with computer under the system of win98/NT/2000/XP, which can instantly complete transmission.


3,Powerful Compatibility
Internationalized directives ensure that it is compatible with CAD / CAM software like type3/ artcam/ castmate/ proe/ UG/ Artcut etc, home and abroad.

4,Intelligent and Humanized Design
It is able to continue engraving when the electricity is cut off or the tool is broken.
Intelligent control of spindle makes it able to auto-start and auto-stop, which is more safely, convenient and power-saving.

5,Powerful Diamond Drill
Powerful frequency changing spindle enables the machine to cut organic glass of 30mm~50mm thick in one cut.

General properties

  • Size: Desktop CNC router
  • Functions: Cutting, Engraving , Routing
  • Milling/routing materials: Wood, Plastic
  • Engraving materials: Wood, Plastic, Stone, Soft metal, Glaa
  • Number of axis: 4 Axis-CNC Router
  • Max. acceptable material thickness: 140 mm


  • Number of Spindels: 1 pcs
  • Spindle speed: 0 rpm — 24000 rpm
  • Spindle power: 2.2 W
  • Working precision: 0.03 mm
  • Repositioning accuracy: 0.03 mm


  • Auto Tool Changer (ATC) : -
  • The control system: Mach 3 USB controller
  • Water tank: +
  • 4th Axis Rotary Table: +
  • Spindle cooling method: Water cooling
  • Mist cooling system: -
  • Dust collector: -

Horizontal working table

  • Working table: T-slot table
  • Transmission way of X: Linear square rail guide
  • Transmission way of X: Linear square rail guide
  • Transmission way of Z.: Linear square rail guide
  • Driving units for X-axis: Ball screw
  • Driving units for Y-axis: Ball screw
  • Driving units for Z-axis: Ball screw

Working area

  • X-axis stroke: 600 mm
  • Y-axis stroke: 900 mm
  • Z-axis stroke: 150 mm


  • Max. working speed: 4 m/min
  • Max. travelling speed: 6 m/min

Power Supply

  • Drive: Stepper motor
  • Voltage: 220
  • Phase: Single-phase
  • Current frequency: 50

Overall dimensions

  • Overall length : 1150 mm
  • Overall width : 975 mm
  • Overall height: 650 mm
  • Weight: 175 Kg
