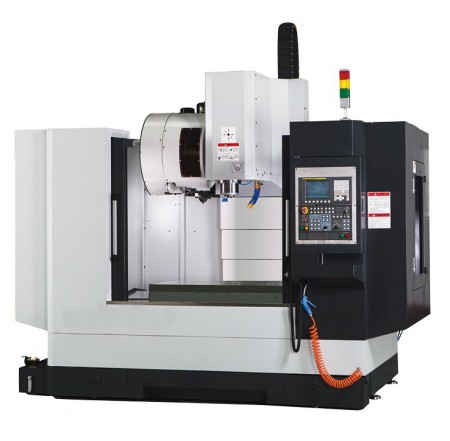

Vertical CNC Milling Center VMC1300
  • Vertical CNC Milling Center VMC1300

Vertical CNC Milling Center VMC1300

Production country: China

Основные характеристики

  • Brand

    Weida

  • Type

    Vertical CNC machining center

  • CNC type

    Fanuc 0i MF5

  • Working table length

    1400 mm

  • Working table width

    700 mm

  • Max. worktable load

    1000 Kg

  • Range of Spindle Speeds

    40 rpm — 6000 rpm

  • Spindle Taper

    BT50

  • ATC type

    Arm type ATC

  • Weight

    9500 Kg

Similar goods

Описание:

Vertical CNC Machine Center VMC1300

The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered.

Can achieve a variety of disc-type, plate type, shell, Cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping,etc., suitable for many varieties, small batch production of complex, high-precision machining of parts to better show its superiority.



  • VMC600 cnc machining center is with Taiwan high speed spindle 8000rpm.
  • VMC600 is with box guideways on X,Y,Z axes with high stability.
  • The whole machine is with closed protection and electric cabinet, safe and beautiful.
  • The machine is with taiwan Hiwin ballscrew, FAG bearing.

Standard configuration:

  • Fanuc 0i mate md system;
  • Drum type tool magazine capability 24 tools;
  • Spindle 6000rpm; Taiwan Hiwin ballscrew
  • linear type guideway;
  • electric handwheel

General properties

  • Type: Vertical CNC machining center

Control unit

  • CNC type: Fanuc 0i MF5

Spindle

  • Spindle axis orientation: Vertical
  • Range of Spindle Speeds: 40 rpm — 6000 rpm
  • Spindle Taper: BT50
  • Distance from spindle nose to table top: 160 mm — 860 mm

Additional

  • Positioning accuracy: 0.005 mm
  • Repeatability accuracy: 0.003 mm

Horizontal working table

  • Guideways: Linear guideways
  • Working table length: 1400 mm
  • Working table width: 700 mm
  • Longitudinal (X-axis) travel of table: 1300 mm
  • Cross (Y-axis) travel of table: 700 mm
  • Vertical (Z-axis) travel of table: 700 mm
  • Rapid feed X-axis: 24 m/min
  • Rapid feed Y-axis: 24 m/min
  • Rapid feed Z-axis: 18 m/min
  • Feed speed: 0 mm/min — 10000 mm/min
  • Max. worktable load: 1000 Kg

T-slots of horizontal table

  • Number of T-slots: 5 pcs
  • T-slot width: 18 mm

Operating tools

  • ATC type: Arm type ATC
  • Tool taper: BT50
  • Max. tool diameter: 135 mm
  • Max. tool lenght: 350 mm
  • Max. tool weight: 15 Kg
  • Tool changing time: 7 s

Power Supply

  • Motor power of spindle: 11 kW

Overall dimensions

  • Overall length: 3700 mm
  • Overall width : 2500 mm
  • Overall height: 3000 mm
  • Weight: 9500 Kg
