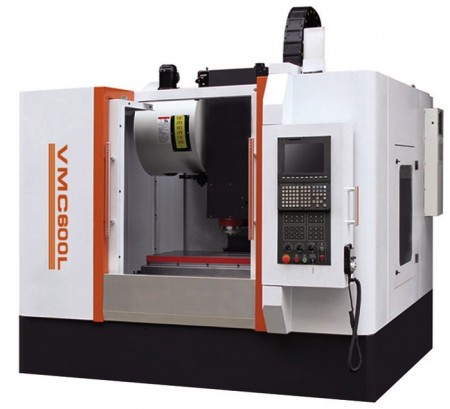

Vertical Machining Center  VMC600L
  • Vertical Machining Center  VMC600L

Vertical Machining Center VMC600L

Production country: China

Основные характеристики

  • Brand

    WMT

  • Type

    Vertical CNC machining center

  • Working table length

    800 mm

  • Working table width

    400 mm

  • Max. worktable load

    300 Kg

  • Range of Spindle Speeds

    0 rpm — 10000 rpm

  • Spindle Taper

    BT40

  • Motor power of spindle

    5.5 kW

Similar goods

Описание:

General properties

  • Type: Vertical CNC machining center

Control unit

  • CNC: Fanuc
  • CNC type: 0i-MF

Spindle

  • Spindle axis orientation: Vertical
  • Spindle drive: Direct drive spindle
  • Range of Spindle Speeds: 0 rpm — 10000 rpm
  • Spindle Taper: BT40
  • Distance from spindle nose to table top: 100 mm — 550 mm
  • Distance from spindle nose to column: 450 mm — 450 mm

Additional

  • Positioning accuracy: 0.005 mm
  • Repeatability accuracy: 0.002 mm

Options

  • Coolant through spindle system: -

Horizontal working table

  • Guideways: Linear guideways
  • Working table length: 800 mm
  • Working table width: 400 mm
  • Longitudinal (X-axis) travel of table: 600 mm
  • Cross (Y-axis) travel of table: 400 mm
  • Vertical (Z-axis) travel of table: 450 mm
  • Rapid feed X-axis: 30 m/min
  • Rapid feed Y-axis: 30 m/min
  • Rapid feed Z-axis: 25 m/min
  • Feed speed: 0 mm/min — 10000 mm/min
  • Max. worktable load: 300 Kg

T-slots of horizontal table

  • Number of T-slots: 3 pcs
  • T-slot width: 14 mm

Operating tools

  • ATC type: Drum-type tool magazine
  • Magazine capacity: 16 pcs
  • Tool taper: NT40
  • Max. tool lenght: 300 mm
  • Tool changing time: 2.5 s

Power Supply

  • Motor power of spindle: 5.5 kW

Overall dimensions

  • Overall length: 1900 mm
  • Overall width : 1700 mm
  • Overall height: 2240 mm
  • Weight: 3500 Kg
